Metal

Aluminium Alloy ( AlSi₁₀Mg )

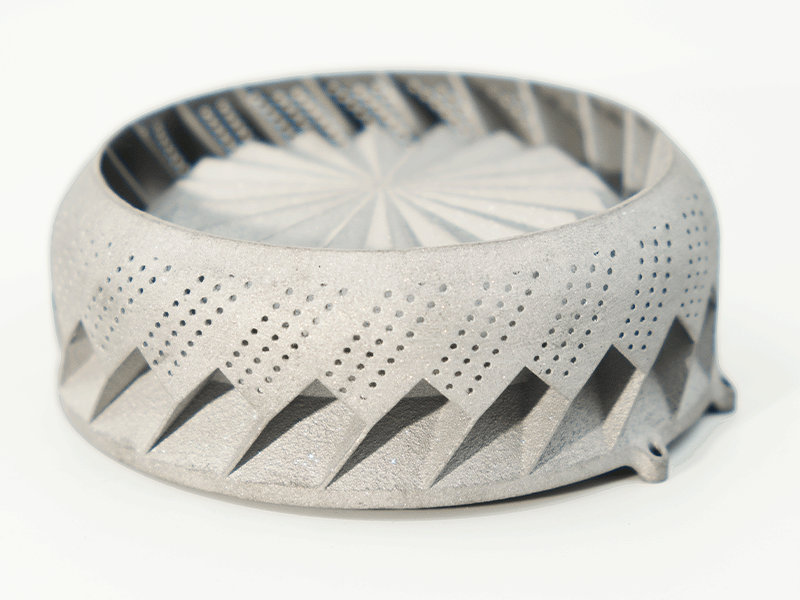

Metal 3D printing, an additive manufacturing process, produces parts by fusing together metal particles layer by layer to form a metal part. It is often chosen as an alternative to CNC machining or metal casting because it can produce parts with the strength and durability of metal while also taking advantage of the design freedoms afforded by 3D printing. It can produce complex designs including lattices and topology-generated structures, both which are impossible to manufacture via traditional CNC machining.

Get an Instant Quote

Share:

Aluminium Alloy ( AlSi₁₀Mg )

PHYSICAL CHARACTERISTICS

Grain Size15~53μm

ShapeSpherical

Mobility150S(Hall flowmeter)

Apparent density1.45 g/cm³

CHEMICAL COMPOSITION

Al(Balance) Si(9~10%) Mg(0.2~0.45%) Cu(≤0.05%) Mn(≤0.45%) Ni(≤0.05%) Fe(≤0.55%) Ti(≤0.15%) O(≤0.15%)

MOLDING PERFORMANCE

Relative Density≥95%

Density2.67 g/cm³

Tensile Strength≥330 MPa

Yield strength≥245 MPa

Elongation at break6 %

Elastic Modulus70 GPa

Hardness120 HB
